Internal blocks, wall, ceiling type system IDV series DL/N1-С

Suggested retail price

26,600- ... 52,250-hrv.
Find a Dealer
Internal blocks, wall, ceiling type system IDV series DL/N1-С
  • Horizontal or vertical installation;

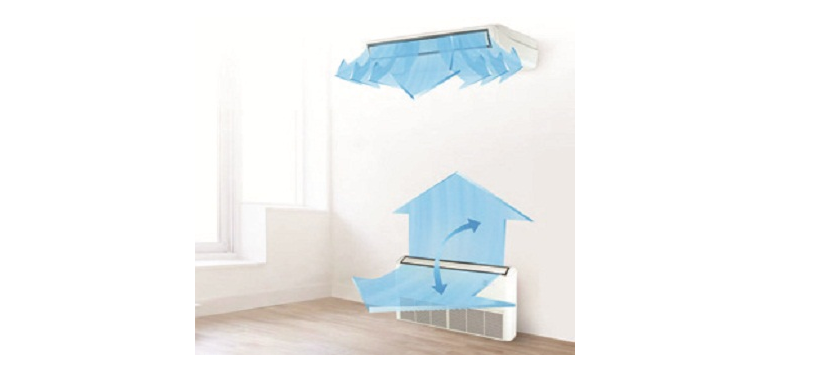

  • Air distribution to 4 directions;
  • Automatic horizontal and vertical blinds (3D -vozdushny flow in AUTO mode);
  • High performance;
  • Built-in EHV-valve;
  • Built-in drain pump (optional);
  • 3-speed fan;
  • IR - remote control included.
Internal blocks, wall, ceiling type system IDV series DL/N1-С

Характеристики IDV-MDV-D36DL/N1-C IDV-MDV-D45DL/N1-С IDV-MDV-D56DL/N1-C IDV-MDV-D71DL/N1-C IDV-MDV-D80DL/N1-C IDV-MDV-D90DL/N1-С IDV-MDV-D112DL/N1-С IDV-MDV-D140DL/N1-С IDV-MDV-D160DL/N1-С
Power, V/Hz/Ph 220/50/1 220/50/1 220/50/1 220/50/1 220/50/1 220/50/1 220/50/1 220/50/1 220/50/1
Cooling Power, kW 3,6 4,5 5,6 7,1 8,0 9,0 11,2 14,0 16,0
Heating Power, kW 4,0 5,0 6,3 8,0 9,0 10,0 12,5 15,5 17,0
Power Consumption, kW 49 120 122 125 130 130 182 182 200
Dimensions without packing, (WxHxD), mm 990x660x203 990x660x203 990x660x203 990x660x203 1280x660x203 1280x660x203 1670x680x244 1670x680x244 1670х680х285
Weight, Net/Gross, kg 26/32 28/34 28/34 28/34 34.5/41 34.5/41 54/59 54/59 57.5/63.5
Air Flow, m3/hour 650/570/500 800/600/500 800/600/500 800/600/500 1200/900/700 1200/900/700 1980/1860/1730 1980/1860/1730 2300/1980/1860
Noise Level, dB 36 38 38 38 40 40 42 42 42
Тhe diameters of the tubes, the liquid/gas, mm 6.4/12.7 6.4/12.7 6.4/12.7 6.4/12.7 9.52/15.9 9.52/15.9 9.52/15.9 9.52/15.9 9.52/15.9
The diameter of the drain pipe, mm 16 16 16 16 16 16 16 16 16
