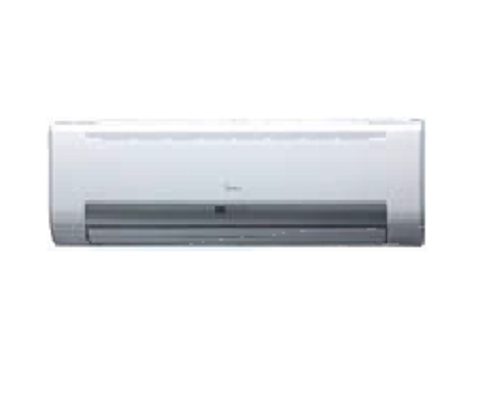

Indoor units of IDV series G-S/N1-Y
Suggested retail price
19,000- ... 24,510-hrv.
Technology
Hydrophilic Aluminium Fin
Increased wettability of the heat exchanger, aluminum plates which have a special coating with a hydrophilic layer, ensuring rapid removal of condensate from the indoor unit that does not allow to rapidly form mold and bacteria while providing a more efficient operation of the air conditioner.
Description

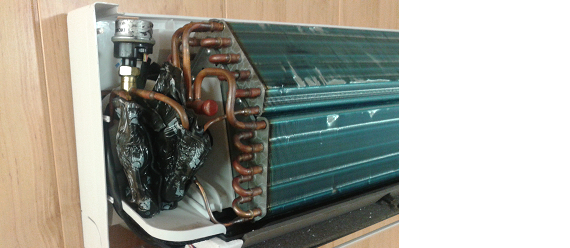

- Built-EXV-valve;
- The special structure of the plates in the evaporator for efficient heat transfer;
- Front panel in white;
- Port to control the drain pump (pump not included);

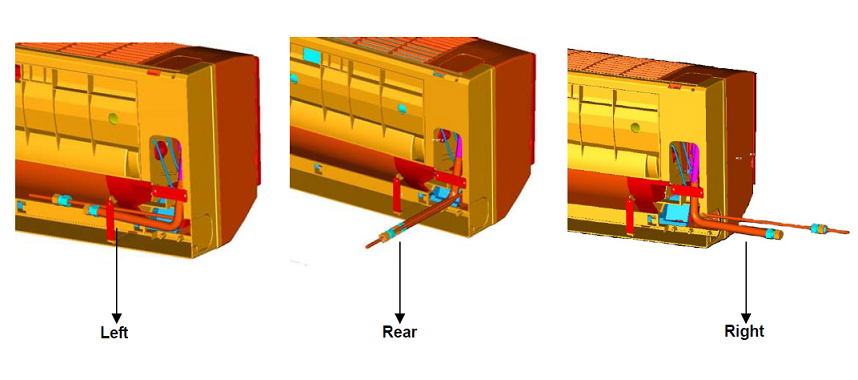

- 3-way output freonoprovodov.
Attention!!! In this series, the output pipe to connect to the Freon line to the left -> TO THE RIGHT!!!
Specifications
| Feature model | IDV-MDV-D22G-S/N1 | IDV-MDV-D28G-S/N1 | IDV-MDV-D36G-S/N1 | IDV-MDV-D45G-S/N1 | IDV-MDV-D56G-S/N1 |
|---|---|---|---|---|---|
| Power, V/Hz/Ph | 220/50/1 | 220/50/1 | 220/50/1 | 220/50/1 | 220/50/1 |
| Cooling Power, kW | 2.2 | 2.8 | 3.6 | 4.5 | 5.6 |
| Heating Power, kW | 2.4 | 3.2 | 4.0 | 5.0 | 6.3 |
| Power Consumption, kW | 30 | 30 | 30 | 30 | 45 |
| Dimensions without packing, (WxHxD), mm | 915x290x230 | 915x290x230 | 915x290x230 | 1075x315x230 | 1075x315x230 |
| Weight, Net/Gross, kg | 13/16.5 | 13/16.5 | 13/16.5 | 15.1/15.8 | 15.1/15.8 |
| Air Flow, m3/hour | 580 | 580 | 580 | 900 | 900 |
| Noise Level, dB | 29 | 29 | 29 | 34 | 34 |
| Тhe diameters of the tubes, the liquid/gas, mm | 6.4/12.7 | 6.4/12.7 | 6.4/12.7 | 6.4/12.7 | 9.5/15.9 |
| The diameter of the drain pipe, mm | 16 | 16 | 16 | 16 | 16 |
