Technology
Dry Mode
Dry mode automatically selects cooling, based on the difference between fixed and temparaturoy actual room temperature. The temperature is regulated while reducing humidity repeated switching on and off of the cooling and ventilation only. when the dry mode on the remote control shows "Drop"
Hydrophilic Aluminium Fin
Increased wettability of the heat exchanger, aluminum plates which have a special coating with a hydrophilic layer, ensuring rapid removal of condensate from the indoor unit that does not allow to rapidly form mold and bacteria while providing a more efficient operation of the air conditioner.
The mixing of fresh air
Organization of fresh air - by a separate duct (in a split system with such a function, the duct is usually a small diameter and is laid along the highway) ...
Description

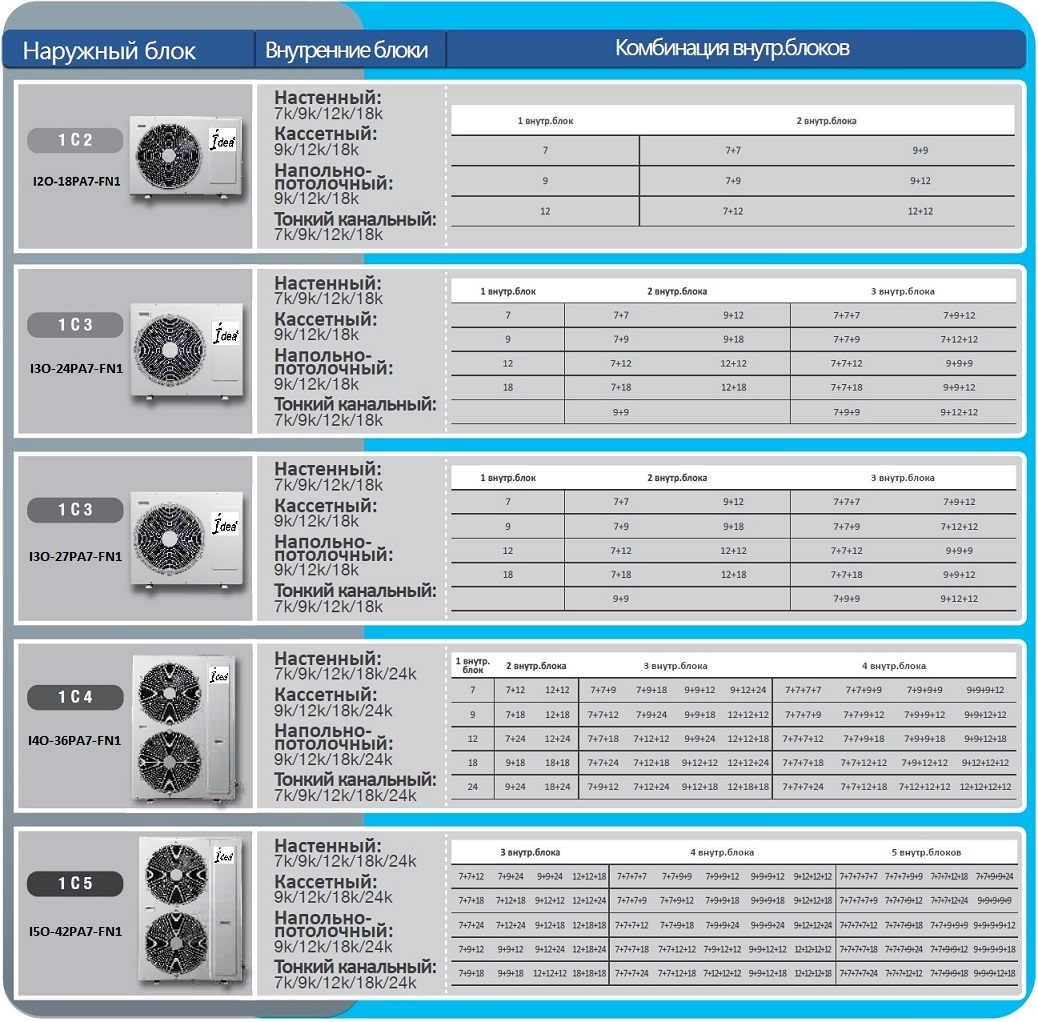

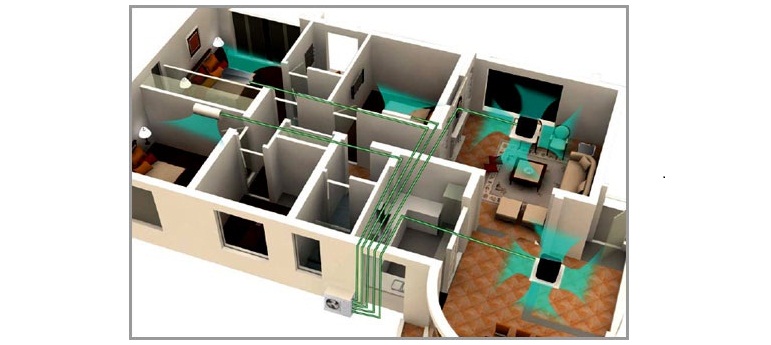

The Idea PRO multi-splitter system allows you to connect up to 5 indoor units to one outdoor unit, which reduces the number of outdoor units and thus saves installation space. All indoor units can be individually controlled and do not need to be mounted at the same time (which is convenient, for example, when repair is already done in some rooms, but in others it continues).
The state-of-the-art DC inverter technology with sinusoidal waves and the technology of active power factor correction ensure low noise level and economy of operation.
The total length of the traces and the maximum height difference between the outdoor and indoor units reaches 60 m and 10 m, respectively, which makes it convenient to place the outdoor and indoor units, making the installation of the system simple and flexible.
Multi-split system can work for cooling at low temperature (up to -10C) in the street.
Attention! If one (or more) units are switched on for cooling, then the remaining indoor units in the "Heating" mode should not be switched on!
Specifications

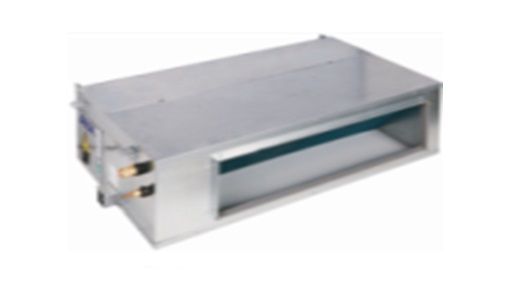

| Model | ITBI-07PA7-FN1 | ITBI-09PA7-FN1 | ITBI-12PA7-FN1 | ITBI-18PA7-FN1 | ||
| Capacity | Cooling | Btu/h | 7506(3855-9220) | 8872(5120-12115) | 12280(5835-13135) | 17400(8530-19790) |
| kW | 2.20(1.13-2.70) | 2.60(1.50-3.55) | 3.60(1.71-3.85) | 5.10(2.50-5.80) | ||
| Heating | Btu/h | 8530(4575-10820) | 9895(5800-12450) | 13650(6480-13375) | 19790(9690-21835) | |
| kW | 2.50(1.34-3.17) | 2.9(1.70-3.65) | 4.0(1.90-3.92) | 5.8(2.84-6.40) | ||
| Electric Data | Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 | 220~240,50,1 |
| Cooling Power Input | W | 45 | 45 | 75 | 137 | |
| Heating Power Input | W | 45 | 45 | 75 | 137 | |
| Air Volume | m3/h | 420/336/294 | 420/336/294 | 580/464/406 | 860/688/602 | |
| Sound Pressure Noise Level | dB(A) | 30/26/23 | 30/26/23 | 32/28/25 | 38/35/32 | |
| Dimension | Net Dim (W*D*H) | mm | 840×460×185 | 840×460×185 | 840×460×185 | 1160×460×185 |
| Packing Dim(W*D*H) | mm | 1030*545*250 | 1030*545*250 | 1030*545*250 | 1350*545*250 | |
| Weight | Net | kg | 16,5 | 16,5 | 17,5 | 21 |
| Gross | kg | 20 | 20 | 21 | 26 | |
| Refrigerant Type | R410a | R410a | R410a | R410a | ||
| Pipe Dia | Liquid Side | mm(inch) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) | 6.35(1/4) |
| Gas Side | mm(inch) | 9.52(3/8) | 9.52(3/8) | 9.52(3/8) | 12.7(1/2) | |
| Drainage | mm | 16.5 | 16.5 | 16.5 | 16,5 | |
